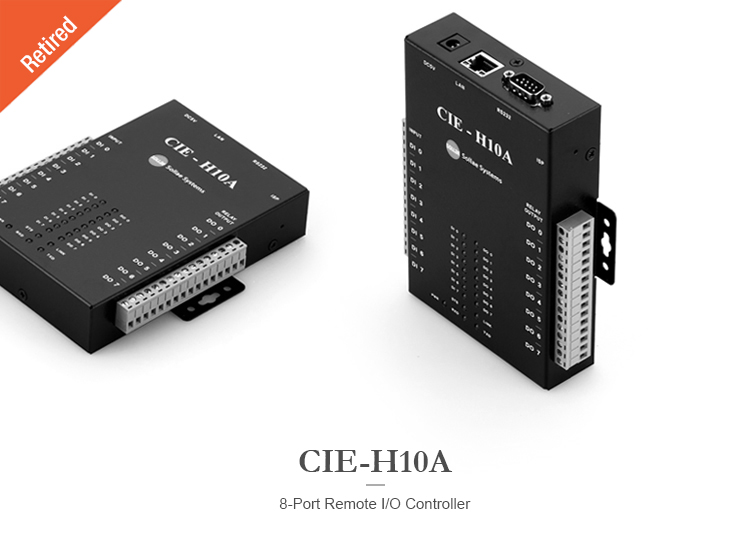

CIE-H10A / 8-Port Remote I/O Controller

Product Specification Videos Download Ordering Info
remote io modbus tcp device cie h10a

CIE-H10A is a remote I/O gateway equipped with 8 digital input ports, 8 digital output ports, an RS-232 and Ethernet interface. Each digital input port is linked to a photocoupler. The input port can monitor the ON/OFF state of equipment (maximum is 24VDC). Each digital output port is linked to a relay. Apart from ON/OFF control, the digital output port can also be controlled to generate a pulse.

CIE-H10A supports Modbus TCP protocol. You can control/monitor equipment/sensors located in remote places from a PC software, mobile app, HMI, or other Modbus TCP devices. You can use our free software/app called ModMap or any software/app that supports Modbus TCP. CIE-H10A is also equipped with an embedded web server with a preloaded web page, so you can use any web browser on a PC/smartphone to access the web page to control/monitor equipment/sensors. The web page is customizable so you can easily change the web UI if needed.

CIE-H10A allows each digital output port to be automatically controlled by a logic formula of digital input and output ports. Especially, CIE-H10A can connect directly to multiple CIE-H12A, CIE-H14A, and/or other CIE-H10A to form an I/O system called Internet Switch. The system allows the output port of a device to be controlled by input ports of other devices, and vice versa, via the Internet. CIE-H10A allows up to eight TCP connections simultaneously, enabling to monitor sensors from different HMI devices/software/apps at the same time. Besides, CIE-H10A can work simultaneously as an RS232 to Ethernet converter while serving I/O operations.

    Features
  • 8 digital input, 8 digital output ports
  • Durable steel case
  • Dry contact adapter (optional)
  • Monitor & control via Modbus/TCP or Web
  • Controlled by simple logic formula operating autonomously
  • Web-based control over custom web page
  • Can be used as Internet switch
  • Free Modbus/TCP program (ModMap)


* The above information is subject to change and Sollae Systems is not responsible for any changes.
Digital Input Port
Number of Ports8
InterfaceIsolated by Photo-coupler
Electric ParameterMAX VIL=1.2V, MIN VIH=2.2V
Maximum Input VoltageDC 24V


Digital Output Port
Number of Ports8
InterfaceIsolated by Relay
Relay Capacity5A(DC28V)


Serial Physical Interface
Serial Interface1 x RS232 Port
RXD, TXD, RTS,CTS, DTR, DSR, GND
± 15KV ESD Protection
ConnectorDB9M Connector


Serial Port Property
Data Rate300bps ~ 230,400bps
Data Bits5, 6, 7, 8 bits
ParityNone, Even, Odd, Mark, Space
Stop Bit1, 1.5, 2


Network Physical Interface
Network Interface10Base-T/100Base-TX Ethernet(RJ45)
Ethernet Speed Auto Sense
1:1 or Cross-over Cable Auto Sense
1000 VAC Isolation


Software Functions
ProtocolsTCP, UDP, IP, ICMP, ARP, DHCP, PPPoE, TELNET
TFTP, DNS, DDNS, HTTP, Modbus/TCP
SecurityIP & MAC filtering - Restrict host or network
Password for Configuring
Digital I/O Port
Communication Mode
Modbus/TCP, HTTP, Stand alone(by simple equation)
Communication ModeTCP Server(T2S)
TCP Client(COD)
TCP Server/Client with AT Command(ATC)
UDP Mode(U2S)
Additional FunctionsRemote Debug Function
TCP Server/Client Mode
Sending MAC address Option


Indicators(LEDs)
PowerRed
StatusYellow, The Current Status
Ethernet LinkGreen
Ethernet RXDYellow
Ethernet TXDGreen
Digital InputYellow x 8
Digital OutputGreen x 8


Management
ezManagerConfiguration and Monitoring Tool through Network and Serial
TelnetTelnet Login
AT CommandConfiguring in ATC Mode


Software
ezManagerConfiguration Tool for Windows
ModMapManagement Tool of I/O controllers for Windows
ezVSPSerial to Network Virtual Driver for Windows
ezTermSimple TCP/IP Communication Test Tool


Dimension
Size153mm x 126mm x 32mm


Operating Environment
Input VoltageDC 5±0.5V
Current Consumption500mA typical
Operating Temperature-40℃ ~ +70℃
Storage Temperature-40℃ ~ +85℃


Certificate
KCRegistration(KN 32, KN 35)
CEEMC 2014/30/EU, RoHS 2011/65/EU


Part Number Description Note
CIE-H10A-BO cie h10a line
CIE-H10A

Optional Accessories Description Note
DCA-H10 cie h10 drycontactadapter
Dry Contact Adapter (DCA)
MOUNTER mounter
Datasheet
SC 1 5serial cable
Serial cable datasheet
DVD dvd
DVD with configuration tools and documentation
