|No. 1876||Is transformer needed?||2023-03-09|
I build circuit where I have multiple Ethernet endpoints and that is why
I place RTL8309N on the PCB ( That is second PCB I build with that IC and previous works fine).
I wonder if I need to put SM91071AL_E transformer between RTL8309N and CSE-M53G.
Both will be on the same PCB with the same ground.

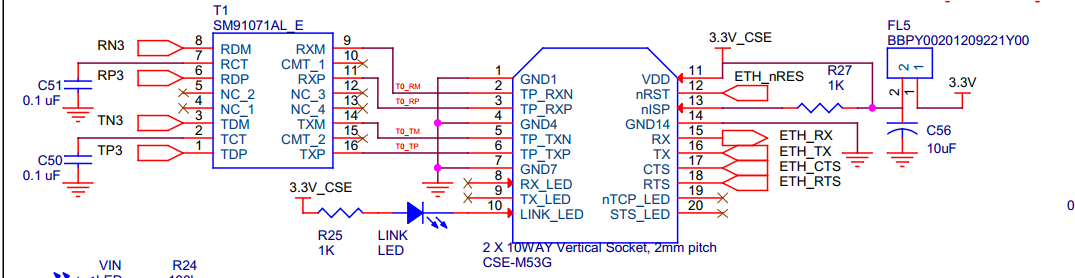

See attached piece of schematic.
|Writer||Krzysztof Bieda-Sawicki||Company||Reamda Ltd|
